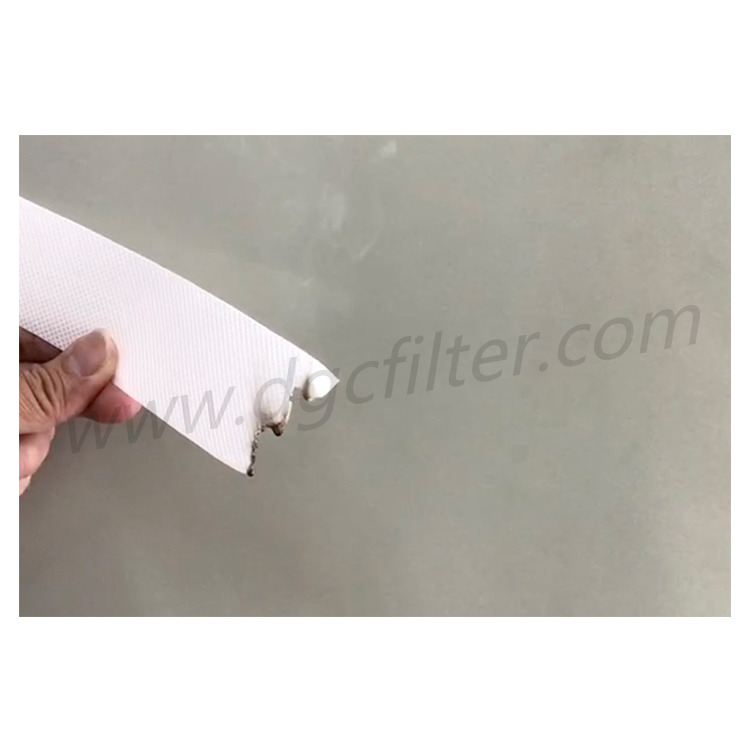

Flame Retardent Resistance Polyester
FLAME RETARDANT SERIES
* 170GSM Flame Retardant: PET-FR/170
* 260GSM Flame Retardant: PET-FR/260
* Flame Retardant PET with PTFE membrane: PET-F4FR/260
* Can be used for high-temperature media: PET-CF4FR/270
FR-TYPE |
Use | Foldable filter media |
|
|
|
|
Composition | Spunbonded polyester with Flame retardant treatment |
|
|
|
|
Product Code | PET-FR/170 | PET-FR/260 | PET-F4FR/260 | PET-CF4FR/270 |
|
Weight(g/㎡) | 170 | 260 | 260 | 270 |
|
Thickness (mm) | 0.4 | 0.55 | 0.55 | 0.55 |
|
Air Permeability
(l/㎡.s) a | 210 | 150 | 40-60 | 30-45 |
|
Filtering Precision b
/Efficiency c | 5μm
(≥99.0) | 5μm
(≥99.5) | 0.3μm
(≥99.99) | 0.3μm
(≥99.99) |
|
Temperature (℃) | ≤80 | ≤135 | ≤135 | ≤135 |
|
Strength | Warp (N/5cm) | 250 | 300 | 380 |
|
| Weft (N/5cm) | 300 | 440 | 440 |
|
MERV d | MERV10/F5 | MERV11/F6 | MERV16/H11 | MERV16/H11 |
|
Remarks | Large filtration area |
| PTFE membrane | Carbon impregnated, Antistatic & PTFE membrane |
|
This series has excellent chemical stability (good resistance to acid, alkaline, humidity or can be used for high-temperature media) |
Remark:
a. Air Permeability was tested at △P=200Pa.
b. Filtration Precision, this data refers to the minimum grade of particle size that can be effectively blocked before the initial "dustcake" is established. In the practical using processes, we can improve the filtration precision by using correct filtration velocity, and establishing stable initial "dustcake", etc.
c. Filtration Efficiency was tested by using 8-12 micron 325 mesh talcum powder as test dust with the filtration speed ≤ 1.2m/ min and the concentration of dust (4±0.5)g/m3 ; after more than 5 times cleaning process, filter media makes a good effect on the ratio of filter effectively blocking dust and the total quantity of dust. (JB/T 10341-2014)
d. Filtration Precision Level is tested at the beginning of using, by ASHARE52.2 in USA or EN779 in Europe.
★The various functions of the filter media can be combined with each other, please contact us with your special needs.
★All technical parameters are for reference only (test data may deviate due to test different conditions and equipment), we reserve the right of making changes without prior notice.
