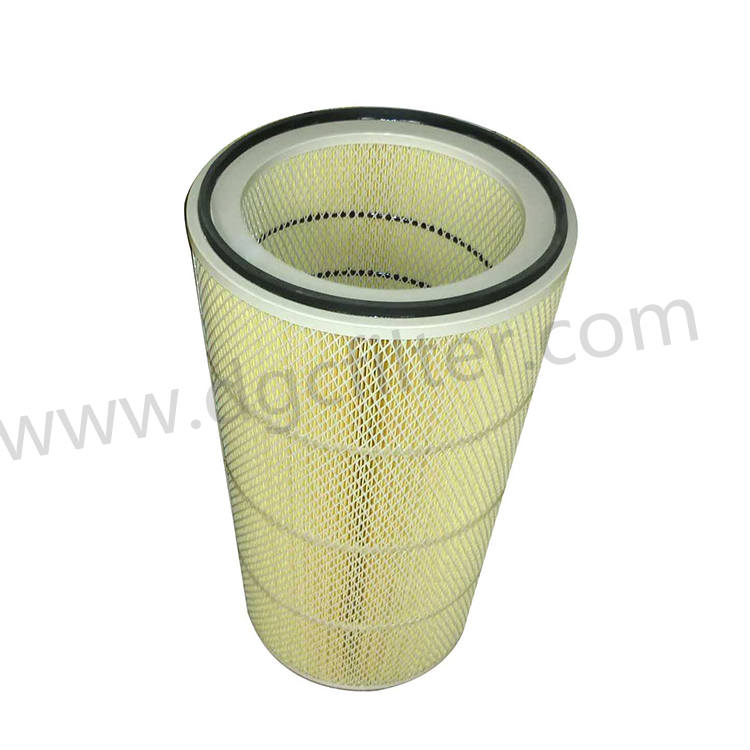

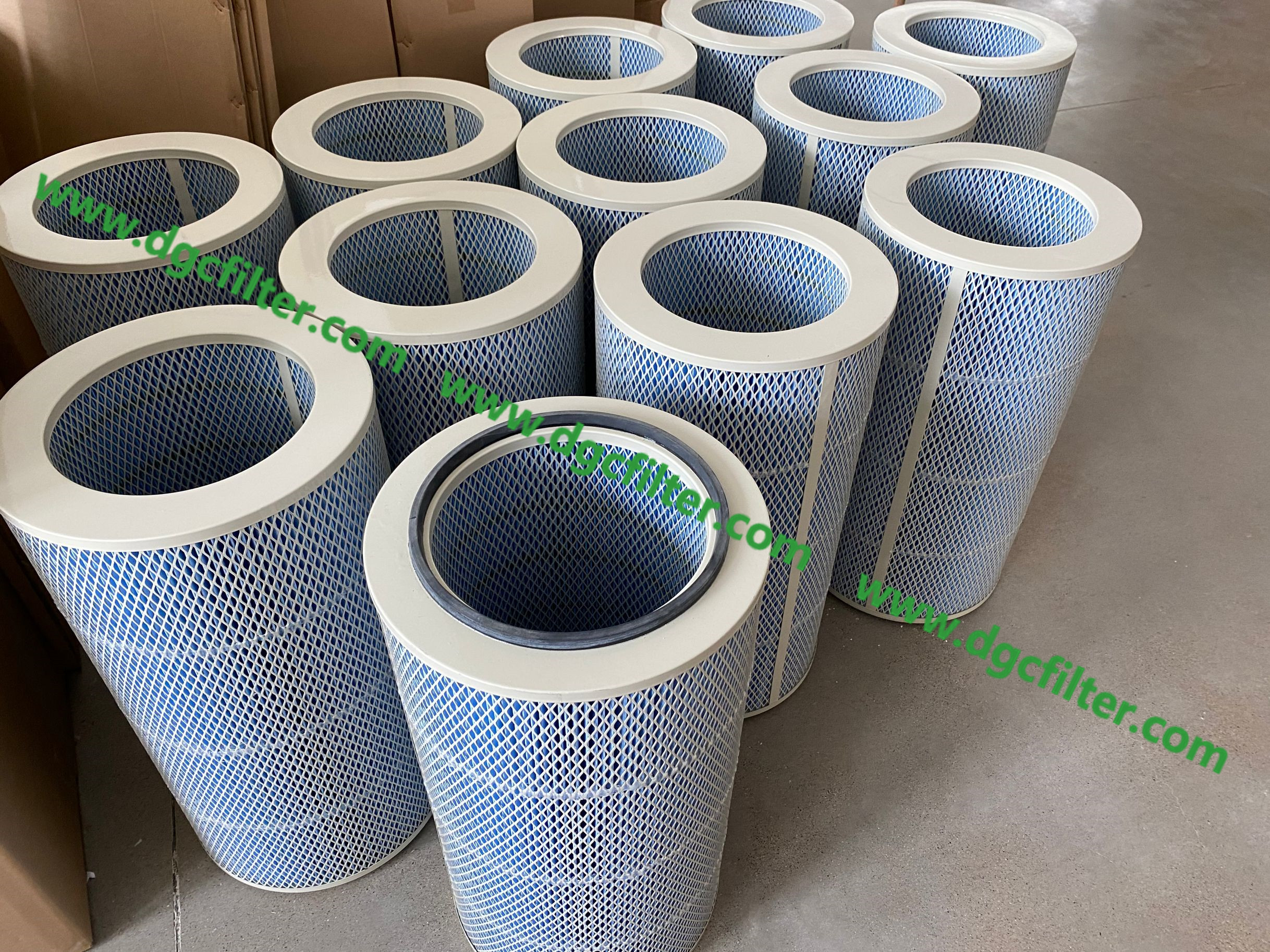

Gas Turbine Air Intake Filter Cartridges
The Conical Cartridge have high surface area, low pressure drop, horizontal installation, vertical installation and other characteristics.
Our vast gas turbine experience enables us to manufacture customized filter cartridge solutions for specific air inlet filtration needs. We also offer on-site technical field test and support.
Gas Turbine Air Intake Filter Cartridge – L TYPE |
Model | L-CE-4066HN | L-CE-3266HN |
Size | Φ405*Φ295*660MM | Φ325*Φ215*660MM |
Media Type | CE-HN/120 |
|
Filter Media | 80/20
Blend Cellulose with NANO Fiber Membrane |
|
Filtration Area | 22.5m2 | 21m2 |
Filtration Precision | 1μm |
|
Precision Grade | MERV15/F9 |
|
Filtration Efficiency | ≥99.95% |
|
Rated Flow | ≤1350m3/h | ≤1250m³/h |
Working Temperature | ≤80℃ |
|
Initial Resistance | ≤90Pa |
|
Metal treatment | Powder spray coating metal/stainless steel mesh |
|
★Other changes will be depended on the demand of client. |
Please contact us if you have any questions about DGC Dust Filtration's Gas Turbine Air Intake Filter Cartridge.
DGC Environmental Technology (DGC Filter: better environment is our business!)
