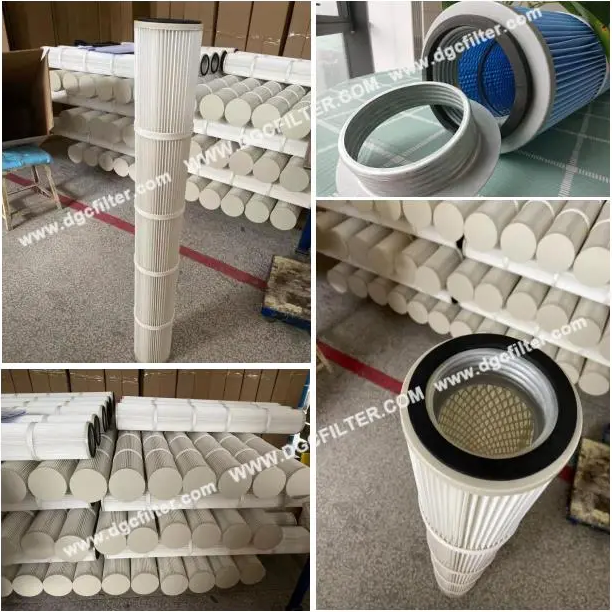

Explore our Screw Thread Type Dust Filter Cartridges! Specifically designed with screw thread installation for easy and secure fitting. These cartridges are highly efficient in dust filtration, ensuring a clean and dust-free environment. Ideal for various industrial applications where reliable dust removal is crucial.Whether you need to upgrade your existing filtration system or install a new one, our screw thread installation dust filter cartridges are the perfect choice.
Screw Thread Filter Cartridge - D TYPE |
A | B | B | Thread pitch | C | L=1000MM
Filtration Area(M2)
Spun bonded Polyester | Remarks |
Outer | Major diameter | Minor diameter |
|
|
|
|
Φ115 | 59 | 58 | 4 | 22 | ≤1.65 | Without threaded top flange cap |
Φ120 | 73 | 71.5 | 5 | 35 | ≤1.65 | same as above |
Φ120 | 75 | 74 | 4.5 | 30 | ≤1.65 | With threaded top flange cap |
Φ155 | 103 | 100 | 8 | 35 | ≤2.8 | same as above |
Φ160 | 95 | 93 | 5 | 35 | ≤3.0 | same as above |
Φ162 | 99.5 | 98.5 | 4 | 35 | ≤3.0 | same as above |
Φ325 | 214 | 211 | 8 | 33 | ≤18.0 | same as above |
★For more detailed size requirement, please contact us. |
