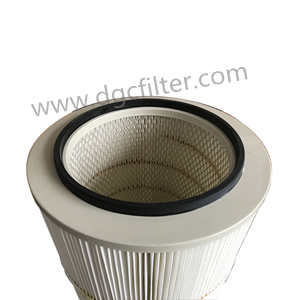

Polyurethane PU head Filter Elements - J TYPE | |
Model | J-PET-158-15106F4 |
Size | Φ158*150*15106MM |
Media Type | PET-F4/260 |
Filter Media | PTFE Membrane Spun bonded Polyester |
Filtration Area | 2.3m2 |
Filtration Precision | 0.3μm |
Precision Grade | MERV16/H11 |
Filtration Efficiency | ≥99.99% |
Rated Flow | ≤165m3/h |
Working Temperature | ≤80℃ |
Initial Resistance | ≤70Pa |
★Other changes will be depended on the demand of client. |
Polyurethane Gel head Filter Elements - J TYPE | |
Model | J-PET-149-15108F1 |
Size | Φ149*15108MM |
Media Type | PET-F1/260 |
Filter Media | 100% Spun bonded Polyester |
Filtration Area | 2.6m2 |
Filtration Precision | 5μm |
Precision Grade | MERV11/F6 |
Filtration Efficiency | ≥99.5% |
Rated Flow | ≤180m3/h |
Working Temperature | ≤80℃ |
Initial Resistance | ≤70Pa |
★Other changes will be depended on the demand of client. |
Polyurethane Gel head Filter Elements - J TYPE (PU CAP) | |
Model | J-PET-148-13106F4 |
Size | Φ148*Φ139*1060MM |
Media Type | PET-F4/260 |
Filter Media | PTFE Membrane Spun bonded Polyester |
Filtration Area | 2m2 |
Filtration Precision | 0.3μm |
Precision Grade | MERV16/H11 |
Filtration Efficiency | ≥99.99% |
Rated Flow | ≤144m3/h |
Working Temperature | ≤80℃ |
Initial Resistance | ≤70Pa |
★Other changes will be depended on the demand of client. |
Polyurethane PU head Filter Elements - J TYPE | |
Model | J-PET-158-15106F4 |
Size | Φ158*150*15106MM |
Media Type | PET-F4/260 |
Filter Media | PTFE Membrane Spun bonded Polyester |
Filtration Area | 2.3m2 |
Filtration Precision | 0.3μm |
Precision Grade | MERV16/H11 |
Filtration Efficiency | ≥99.99% |
Rated Flow | ≤165m3/h |
Working Temperature | ≤80℃ |
Initial Resistance | ≤70Pa |
★Other changes will be depended on the demand of client. |
Polyurethane Gel head Filter Elements - J TYPE | |
Model | J-PET-149-15108F1 |
Size | Φ149*15108MM |
Media Type | PET-F1/260 |
Filter Media | 100% Spun bonded Polyester |
Filtration Area | 2.6m2 |
Filtration Precision | 5μm |
Precision Grade | MERV11/F6 |
Filtration Efficiency | ≥99.5% |
Rated Flow | ≤180m3/h |
Working Temperature | ≤80℃ |
Initial Resistance | ≤70Pa |
★Other changes will be depended on the demand of client. |
Polyurethane Gel head Filter Elements - J TYPE (PU CAP) | |
Model | J-PET-148-13106F4 |
Size | Φ148*Φ139*1060MM |
Media Type | PET-F4/260 |
Filter Media | PTFE Membrane Spun bonded Polyester |
Filtration Area | 2m2 |
Filtration Precision | 0.3μm |
Precision Grade | MERV16/H11 |
Filtration Efficiency | ≥99.99% |
Rated Flow | ≤144m3/h |
Working Temperature | ≤80℃ |
Initial Resistance | ≤70Pa |
★Other changes will be depended on the demand of client. |
