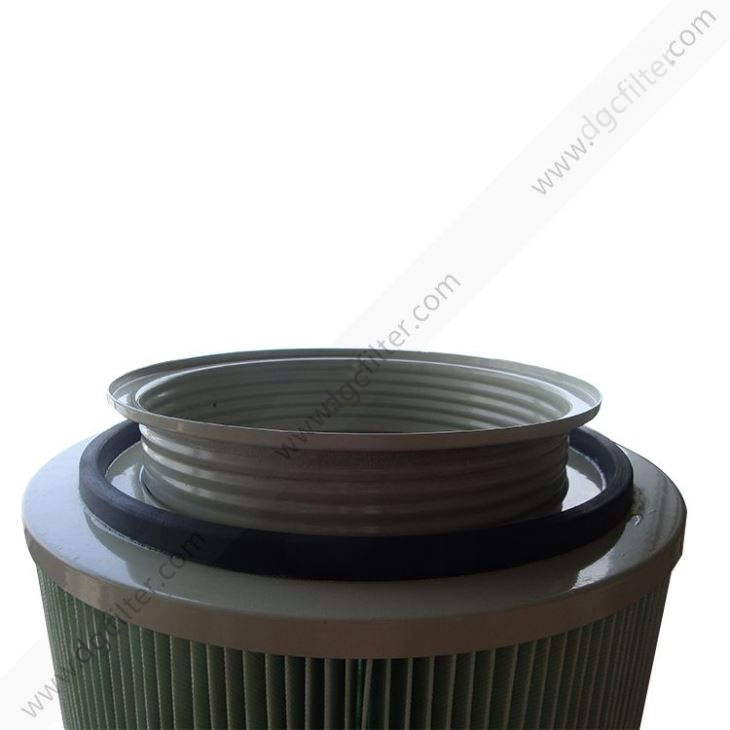

325 PTFE Membrane Filter Cartridge
Type D---Screw Cap Series |
|
1 | Model Name | D-PET-3266N |
2 | Size | Φ325*660MM |
3 | Media Type | PET-N/260 |
4 | Filter Media | Nano fiber PET spun bonded polyester |
5 | Filtration Area | 11 square meter |
6 | Metal treatment | Powder spray coating metal/stainless steel mesh |
7 | Top/bottom end cap | Closed |
8 | Filtration precision | 1μm |
Remarks: other changes will be depended on the demand of client |
Nano fiber are laminated with a layer of 0.3 µm Nano super fine fibers through electrospinning. It is a surface filtration media type, resistance has almost no change after lamination of Nano fibers, but greatly increase precision of filtration. It has characteristics of lower cost, high precision, excellent permeability, etc. Applicable for higher requirement of emission, smaller dust environments, also applicable for conditions with certain volume of oil, smoke, gas; such as welding fume treatment, gas turbine, compressed air station, shot blasting, etc.
