Cylindrical Air Filter Cartridge

Quantity:

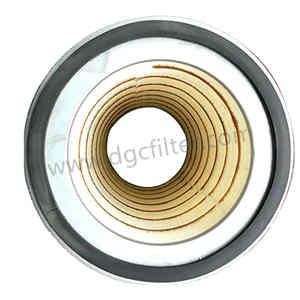

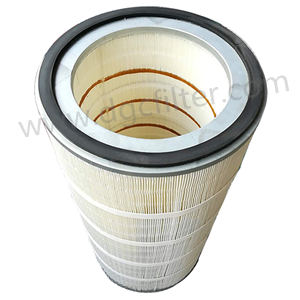

Cylindrical Air Filter Cartridge

This series are laminated with a layer of 0.3 µm Nano super fine fibers through electrospinning. It is a surface filtration media type, resistance has almost no change after lamination of Nano fibers, but greatly increase precision of filtration. It has characteristics of lower cost, high precision, excellent permeability, etc. Applicable for higher requirement of emission, smaller dust environments, also applicable for conditions with certain volume of oil, smoke, gas; such as welding fume treatment, gas turbine, compressed air station, shot blasting, etc.

Type A---Cylindrical Series

1

Model Name

A-CE-3566N

2

Size

Φ350*Φ240*660MM

3

Media Type

CE-N/120

4

Filter Media

8020 Cellulose Nano fiber Membrane Air Filter Cartridge

5

Filtration Area

23m²

6

Metal treatment

Powder spray coating metal/stainless steel mesh

7

Top/bottom end cap

Open/closed/hole with/without outer mesh

8

Filtration precision

1μm

Remarks: other changes will be depended on the demand of client
